Rotary Air Filter Paper Pleating Machine
It is special for making heavy duty air filter; Have Counter,
Marking, Slitting device,Easy operation, High efficiency.
650type
1. Pleating speed: 3 - 40M/min
2. Max. Pleating width: 620mm
3. Pleating height: 13-75mm
4. Power: 1.5KW 380V
5. Heater temperature: 0°C - 200°C
6. Weight: 800KG
7. Size: 1800mm x 1220mm x 1350mm
780type
1. Pleating speed: 3 - 40M/min
2. Max. Pleating width: 750mm
3. Pleating height: 13-75mm
4. Power: 1.5KW 380V
5. Heater temperature: 0°C - 200°C
6. Weight: 900KG
7. Size: 1800mm x 1350mm x 1350mm
Panel Air Filter Paper Pleating Machine
It's equipped with advanced gluing machine and glue melting faster speed. Easy operation and high efficiency.
1. Width available: 70mm - 250mm
2. Pleating height available: 20mm - 70mm
3. Speed available: 5m - 25m/minute
4. Motor power: 7.5KW
5. Air pressure: 0.2 - 0.3Mpa
6. Weight: 500KG
7. Size: 1800 x 1200 x 1000mm
Air Filter PU Injection Machine
The machine is mainly suitable for PU air filter, can produce both round and panel air filter, easy to operate, high efficiency, easy matching.
1. Filter end cap dia. available: 400 x 350mm
2. Capacity of glue tank: 100L 100L 60L
3. Flux of glue: Adjustable
4 Duration of gluing: Adjustable
5 Air pressure: 5-8kg/cm2
6 Power: Three-phase 380V 8KVA
7 Size: 1800 x1400 x 1900mm

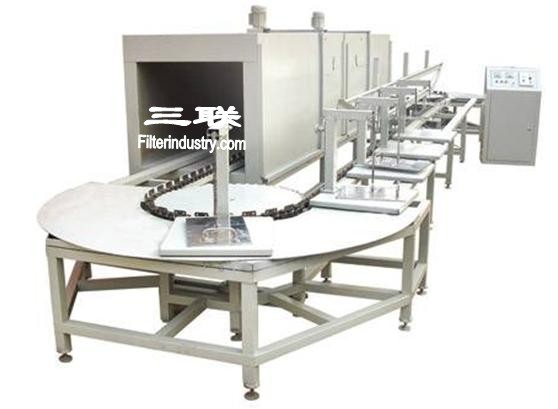

PU Curing Oven
The machine is mainly used in curing of PU type filter after injection; it has several stations, easy operation and high efficiency.
Automatic Air Filter Metal Mesh Rolling Machine
The machine can to Slitting, Cutting, and Rolling at one time.
PLC control, High precision, Easy operation, High efficiency.
1. Width: 50-1250mm
2. Power: 1.1kw
3. Weight: 750kg
4. Size: 1700 x1900 x 1500 mm
Air Filter Metal Mesh Nipping Machine
This machine is mainly used for the roll forming air filter metal mesh.
1. Max width: 620mm
2. Blunt pressure: 12T
3. Speed: 10pcs/min
Any question, pls kindly tell me; Skype: JASLSTEVEN
